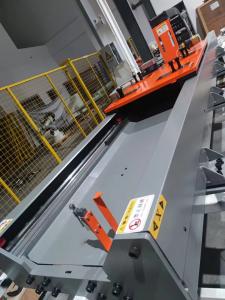

Easy to repair and maintain robot rails with closed covers
robot rails with closed covers description
The importance of having a closed cover plate for robot guide rails lies in its ability to protect the rail and its internal components from various external elements, such as dust, debris, moisture, and other contaminants. This protection not only extends the lifespan of the guide rail but also ensures the precision and reliability of the robot's movements by preventing foreign particles from interfering with the rail's operation.
Additionally, a closed cover plate helps to minimize the need for regular maintenance, as it reduces the likelihood of internal damage or wear caused by external factors. Overall, having a closed cover plate is crucial for ensuring the optimal performance and longevity of robot guide rails.
robot rails with closed covers spesification
| NO | Name | Brand/Specification | Remarks |
| 1 | Track body | YOUNGYOU/W=700mm,H=350mm,L=As required by the buyer | Provided by the seller |
| 2 | Planetary reducer | SHIMPO Japan | Provided by the seller |
| 3 | linear guide rail | HIWIN TaiWan HGH45 | Provided by the seller |
| 4 | Slide block | HIWIN TaiWan HGH45 | Provided by the seller |
| 5 | Rack and pinion | China TaiWan YCC Helical gear | Provided by the seller |
| 6 | lubrication system | YOUNGYOU 1L | Provided by the seller |
| 7 | Dust cover | GBS/Semi enclosed sheet metal type/Organ style | Provided by the seller |
| 8 | Hard limit elastic buffer | YOUNGYOU | Provided by the seller |
| 9 | Robot mounting plate | GBS/1200*1000*30mm | Provided by the seller |
| 10 | Ground connecting plate | YOUNGYOU | Provided by the seller |
| 11 | Drag chain | Koduct/W=200mm,H=45mm,R250mm | Provided by the seller |
| 12 | Reducer connecting flange | YOUNGYOU | Provided by the seller |
| 13 | Servo motor | ①linkage Robot external axis | Provided by the seller |
| ②Non linkage servo motor | Provided by the seller |
| 14 | Adjusting bolt | M15 fine pitch thread | Provided by the seller |
| 15 | Limit sensor | Japan Omron | Provided by the seller |
product details
Application case(Robot rails with closed covers)
Guide rail configuration suggestions
Packaging and transportation
