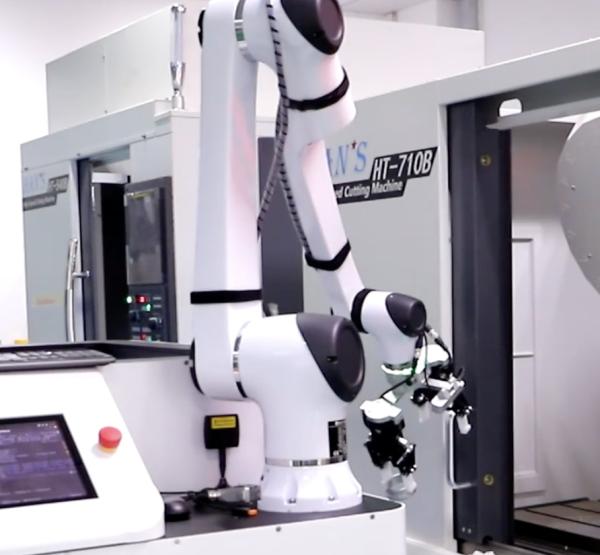

Cobot Robot Arm 6 Axis Cooperative Cutting System Reach 1300mm

  • 1
  • 2
  • 3

Brand Name : CHHANS

Model Number : EWR-DZ15

Certification : ce cr

Place of Origin : china

MOQ : 1

Supply Ability : 500sets/month

Packaging Details : carton ➕ Foam inner packaging, outer frame fixed by wood frame

IO power : 24V 2A

Repeatability : 0.1mm

Axis : 6 axis

Payload : 15kg

Reach : 1300mm

IP rating : IP54

Control cabinet size : 536*445*319

Key Words : Cost-effectiveness Robot arm

Contact Now

Cost-effectiveness 6 Axis Cooperative Robot Cutting System Reach 1300mm cobot

Cobots can be more cost-effective than traditional robots because they require less infrastructure and can be quickly and easily reprogrammed for different tasks. They also have a smaller footprint and can be easily integrated into existing production lines.

Product Supply

ABB Robot Arm

ABB Cobot Arm

Kuka Cobot Arm

Cooperative Cobot Arm

Robot positioner

Robot Tank Tracks

ITEM VALUE
Applicable vision system

HIKVISON/COGNEX/KEYENCE/BASLER/Micromatch

Mech-Mind/UBisense/Seizet
After Warranty Service Video technical support, Online support
Local Service Location None
Showroom Location China
Video outgoing-inspection Provided
Machinery Test Report Provided
Communication mode TCP/IP Modbus
Warranty of core components 1 Year
Core Components PLC, Motor
Place of Origin China
Package Size 1050*610*480mm
Gross Weight 70kg
Warranty 1 Year
Technical service Online support
Weight (KG) 60kg
Brand CHHANS
Axis 6 axis
Payload 15kg
Reach 1300mm
Control cabinet size 536X445X319mm
Maximum operating speed 2m/s
Repeatability ±0.1mm
IP protection IP54
Temperature range 0~50°
Typical power consumption 600W

Cobot Robot Arm 6 Axis Cooperative Cutting System Reach 1300mm

Cobot Robot Arm 6 Axis Cooperative Cutting System Reach 1300mm

Cobot Robot Arm 6 Axis Cooperative Cutting System Reach 1300mm

Cobot Robot Arm 6 Axis Cooperative Cutting System Reach 1300mm

Cobot Robot Arm 6 Axis Cooperative Cutting System Reach 1300mm

Transportation and packaging

Cobot Robot Arm 6 Axis Cooperative Cutting System Reach 1300mmCobot Robot Arm 6 Axis Cooperative Cutting System Reach 1300mm

We used this e18 for puncture surgery in a hospital in Peru. Very high accuracy, very stable operation. If you need more product information, please contact me:+8618601676399

Q&A

Q:How safe are collaborative robots?

A:The safety of collaborative robots is obvious to all.Unlike traditional robots, cobots are designed to work safely alongside humans without posing a risk to their physical well-being. They typically have sensors and safety features that enable them to stop or slow down if a human enters their workspace.
