CNC 6 Axis Industrial Collaborative Robot Arm 18kg Cobot

Product Categories
Shanghai YoungYou Intelligence Co.,Ltd.
Contact Now

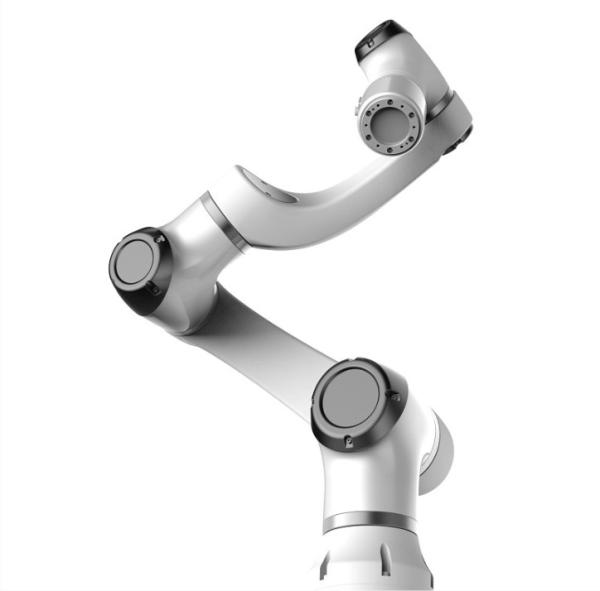

CNC 6 Axis Industrial Collaborative Robot Arm 18kg Cobot

  • 1
  • 2
  • 3

Brand Name : hans

Model Number : E18

Certification : ul

Place of Origin : china

MOQ : 1

Supply Ability : 500sets/month

Packaging Details : carton ➕ Foam inner packaging, outer frame fixed by wood frame

IO power : 24V 2A

Gross weight : 78kg

Axis : 6 axis

Payload : 18kg

Reach : 1100mm

Net weight : 58kg

Control cabinet size : 536*445*319

Key Words : The combination of electric grippers

Contact Now

The combination of electric grippers and collaborative robots Payload 18kg​

It is widely used in "automobile factory, food factory, drug factory, auto parts factory, clothing factory, chemical factory, etc.". The applications involved can include "handling, stacking, locking screws, loading and unloading, welding", etc.

Company Product List

400g load cobot

3kg load cobot

5kg load cobot

7kg load cobot

10kg load cobot

15kg load cobot

ITEM VALUE
Applicable Industries Food and beverage manufacturing/Automotive manufacturing/Healthcare manufacturing/Electronics manufacturing
Communication mode TCP/IP Modbus
Warranty of core components 1 Year
Core Components PLC, Motor
Package Size 1050*610*480mm
Gross Weight 73kg
Technical service Online support
Weight (KG) 58kg
Axis 6 axis
Payload 18kg
Reach 1100mm
Control cabinet size 536*445*319mm
Maximum operating speed 2m/s
Repeatability ±0.1mm
IP protection IP54
Temperature range 0~50°
Typical power consumption 600W

CNC 6 Axis Industrial Collaborative Robot Arm 18kg Cobot

CNC 6 Axis Industrial Collaborative Robot Arm 18kg Cobot

Transportation and Packaging

CNC 6 Axis Industrial Collaborative Robot Arm 18kg Cobot

CNC 6 Axis Industrial Collaborative Robot Arm 18kg Cobot

In addition to providing collaborative robots with diverse loads and arm extensions, we also provide conventional industrial robots and peripheral products, such as robot guides, robot protective clothing, robot grippers, and robot software. Please feel free to contact our sales hotline (WhatsApp) at: +8618601676399

Company Technical Support (Remote Video Guidance)

CNC 6 Axis Industrial Collaborative Robot Arm 18kg Cobot
