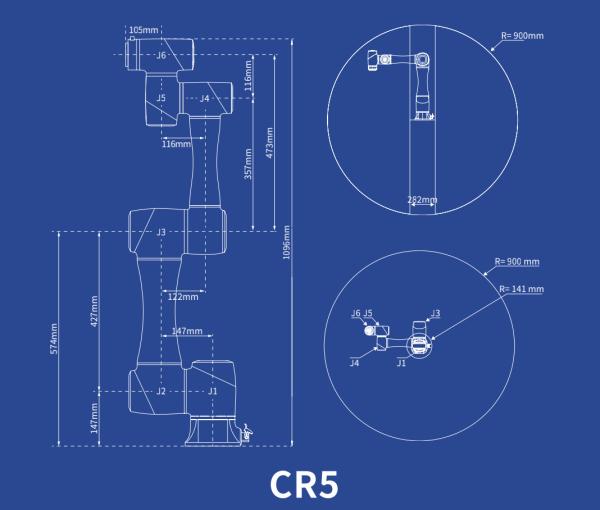

handling collaborative robot with 5kg payload and flexibly arranged reach 900mm
The use of collaborative robots, or cobots, in food production facilities has become increasingly necessary due to the need for safer and more efficient food processing operations. Cobots offer several advantages over traditional industrial robots in this context.
One reason to use cobots in food production facilities is their safety features. Cobots are designed to work safely alongside human operators, reducing the risk of accidents and injuries. In contrast, industrial robots typically operate within fenced-off areas and require extensive safety precautions to ensure the safety of human operators.
Know more about our cobot and company
Company products supply
- 3kg load cobot
- 5kg load cobot
- 7kg load cobot
- 10kg load cobot
- 15kg load cobot
| ITEM | DETAIL |
| Control cabinet size | 360mm*160mm*402.4mm |
| Weight of control cabinet | 12kg |
| Number of control axes | 6 axis + external control axis |
| Input power | Single phase electricity110V/220AC.7.5A,50/60HZ |
| Output power | 48V,20A |
| Braking resistance | 17W,10Ω,four |
| Communication interface | EtherCAT(For external expansion shaft)Ethernet |
| IO interface | 16 channel digital output |
| 16 channel digital input / output(multiplexing) |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current |
| 1 channel ABZ incremental encoder input |
| Teaching method | Handheld teaching pendant / APP |
| programing language | script |
| BLOCKLY |
| Installation mode | Floor type |
| Environment | Temperature :0℃~45℃/Humidity:≤95%,No frost |
| Degree of protection | IP20 |
| Cooling mode | Forced air cooling |
| Safety function | Emergency stop function, reserved external safety interface (can be controlled through IO interface) |
| Indicator Status | During normal power on, the red indicator light is always on; When the power is off, the indicator light goes out |
| Maintain | Diagnostic software tools |
| Power off zero position protection function |
| Reserved remote service function |
Customer pain points:
Formaldehyde, acetaldehyde and other harmful gases exist in the plasticizing workshop, which is not conducive to human health.
Manual feeding is inefficient and easy to cause unexpected risks.
Solution:
After getting the labeled materials through the CR10 robot, the high-speed conveyor belt will send the materials to the limit block, and the eccentric gripper will move the mechanical arm to the barrel edge. The soft coating material will be used to achieve the action of sticking the injection molding surface materials to the stickers, thus realizing the process requirements of fully automated assembly line production.
Our company can also configure robots with peripheral products, such as guides, turntables, protective clothing, and pipe packages
If you have any questions, please feel free to contact us at WhatsApp:+8618601676399 Email: carmen.lu@rely-robot.com
Our logistics and packaging methods
