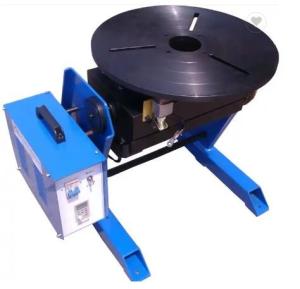

Repetitive accuracy of 0.06 turntable locator machine Turntable size:500mm
Introduction of the products
1.310mm workbench
Thickness 12mm, durable wear
2. With XH10-210mm
Holding diameter 10-210mm
3. Time reset control box
Welder linkage, automatic welder
4.0-90 degree free rotation
Turbine worm, automatic locking
5. Quickly tighten and loosen
a pair of claws, positive and negative
6. Anti-high frequency circuit board
Prevent high frequency breakdown of argon arc welding
7. Rack spray treatment
Bright and fresh, never rust
8. Four-wire conductive carbon brush
High copper wear resistance and long life
9. With welding gun bracket
The welding gun is fixed and the weld is well formed.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| item | value | | Type | Welding Positioner | | Condition | New | | Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company | | Video outgoing-inspection | Provided | | Machinery Test Report | Provided | | Marketing Type | New Product 2020 | | Warranty of core components | 1 Year | | Core Components | PLC, Engine, Bearing, Gearbox, Motor | | Showroom Location | None | | Place of Origin | China | | Brand Name | GBS | | Warranty | 1 Year | | Key Selling Points | Easy to Operate | | Weight (KG) | 500KG | | Brand | GBS | | Model | GBS-02-U300 | | Version | Casting version | | Type | U Type | | Payload | 300kg | | Repeatability | 0.06mm | | Carrying current | 500A | | Power supply | 380V | | Central control shaft | 50mm | | Turntable size | 500mm | |
Product parameters table
